This glass reduces deterioration from laser radiation to 1/5 or less relative to that of conventional artificial crystals, and its light resistance against high-intensity lasers, which are used for IC steppers/scanners, etc., has been greatly improved. It is an optimal artificial crystal for polarization optical elements (such as depolarization plates and wave plates), diffractive optical elements, and prism materials.

Applications

  • Prisms

Synthetic quartz crystal CQ has considerably improved resistance to intense laser beams used in semiconductor lithography equipment, developed in synergy with Tokyo Denpa’shigh-quality quartz crystal manufacturing technology and AGC’s expertise in polishing and laser resistance evaluation.
CQ shows deterioration by laser irradiation equal to or less than 1/5 that of conventional synthetic quartz crystal materials.

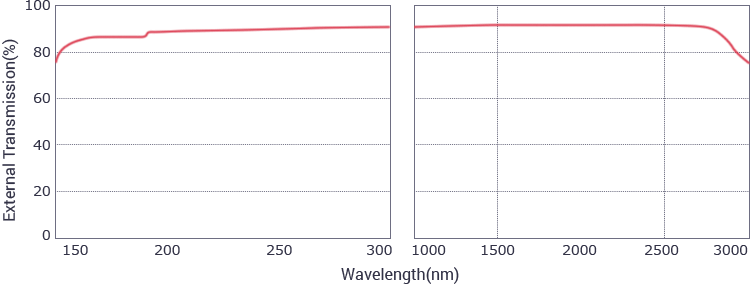

Transmittance

General Properties

Grade CQ
Bubbles and inclusions IEC758/JIS C 6704 Ⅰb
CTE  (30-100°C) Z axis 8ppm/K
X axis 14ppm/K
Refractive Index at 589nm 1.54
Laser durability Solarization none
Degradation of Transmission /pls x 0.18Mpls <0.3%/cm
Density g/c 2.65
Heat conductivity (200°C) K(W/m-℃)
Z axis
6.6
K(W/m-℃)
X axis
4.1
  • Data is for reference only.

Durability to ArF Irradiation

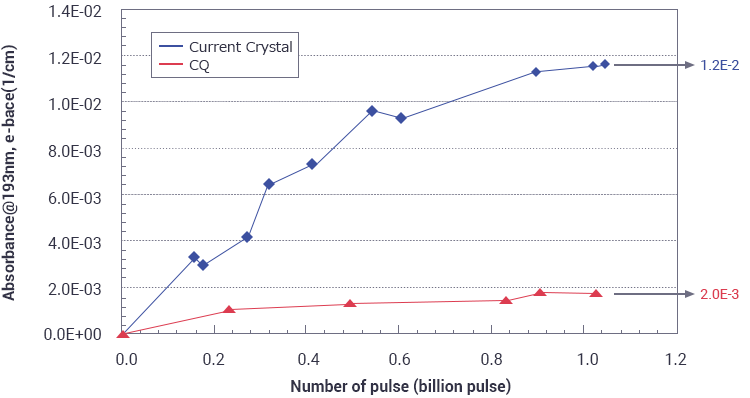

Conventional Synthetic Quartz Crystal vs. High Laser Durability Crystal CQ (5mJ/cm2/pulse)

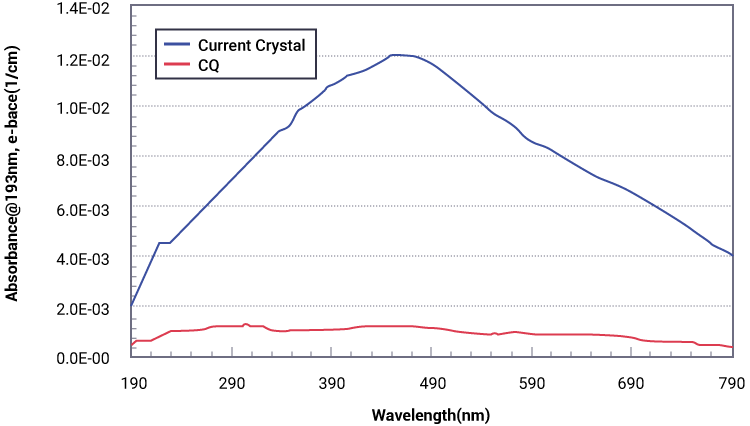

△absorption coefficient spectra after ArF irradiation (5mJ/cm2/pulse,1 Billion)
